Multi-function Board

ABM^? Multi-function Board (MB series) has a wide range of density and thickness,and has been widely used. The product is mainly applied as a fire, acoustic and thermal insulation in places such as partitions, metal/stone cladding curtain walls, light steel roofs, wall frames, ceilings, fire doors and floors.

Standard Specification

Product Properties

Product Application

Authenticity Verification

Product Type	MB 40	MB 50	MB 60	MB 80	MB 100	MB 120
Nominal Density, kg/m³	40	50	60	80	100	120
Thickness, mm	50~150	40~150	40~250	25~250	25~200	25~150
Size(L×W), mm	1200x600

Properties	MB 40	MB 50	MB 60	MB 80	MB100	MB120	Unit	Test Method
Thermal Conductivity(25℃)	≤0.037						W/(m?K)	GB/T 10295
Reaction to Fire	A1						---	GB 8624
Melting Temperature	≥1000						℃	---
Surface Burning Characteristics	Smoke Development≤5, Flame Spread=0						---	ASTM E84
Acidity Coefficient	≥1.8						---	GB/T 5480
Water Repellence	≥99						%	GB/T 10299
Mass Moisture Absorption	≤0.5						%	GB/T 5480
Short-term Water Absorption (partial immersion, 24h)	≤0.2						kg/m²	GB/T 30805
Dimensional Stability	≤0.5						%	GB/T 30806
Corrosiveness	Corrosion Free						---	ASTM C665
Formaldehyde Emission	≤0.5						mg/(kg?h)	GB/T 32379
Noise Reduction Coefficient（NRC）	≥0.80						---	GB/T 18696

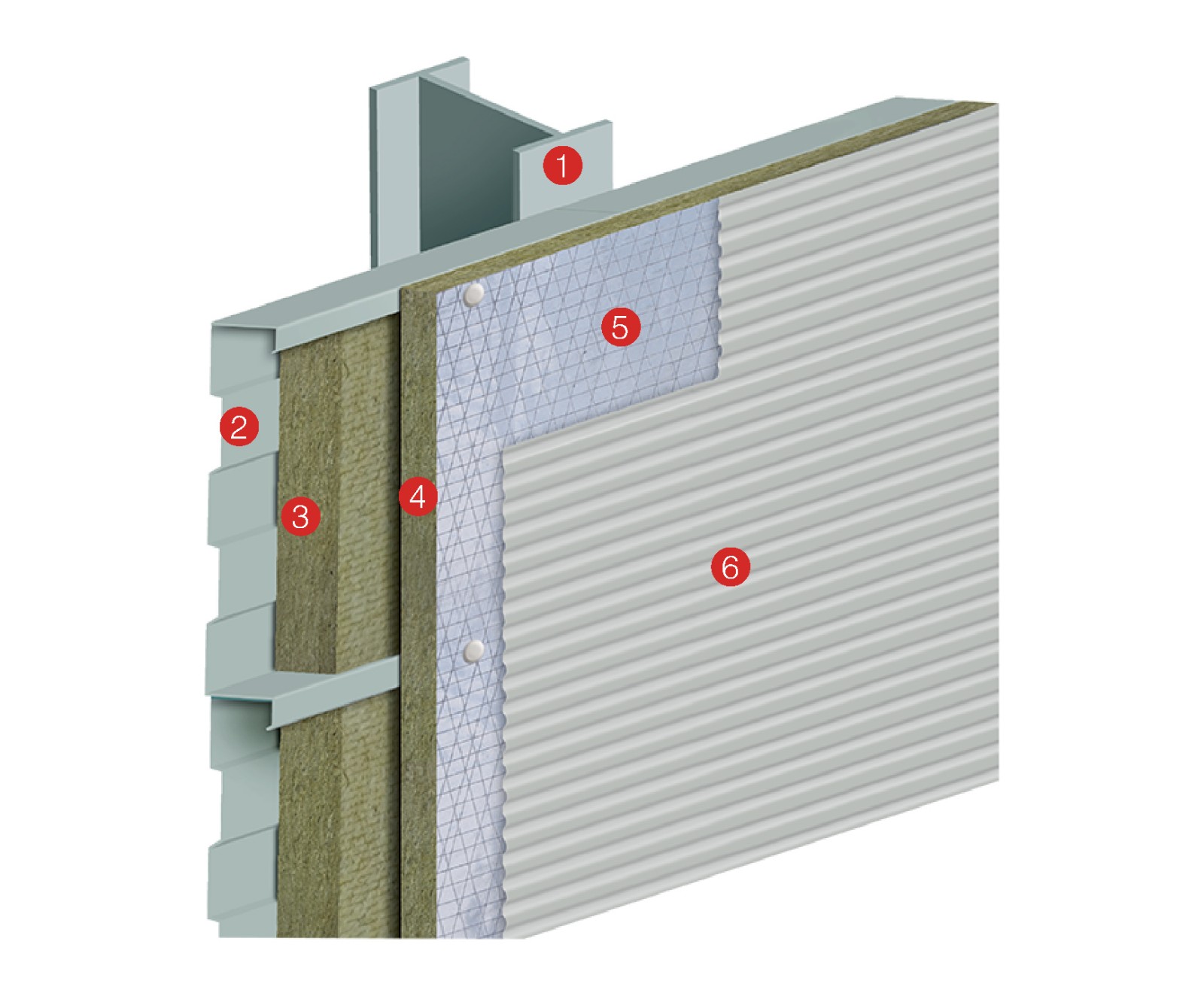

Thermal Insulation System For Light Steel Structure

1.Column

2.Inner Metal Panel

3.ABM Multi-function Board (MB low density series)

4.ABM Multi-function Board (MB high density series)

5.Facing

6.Outer Metal Panel

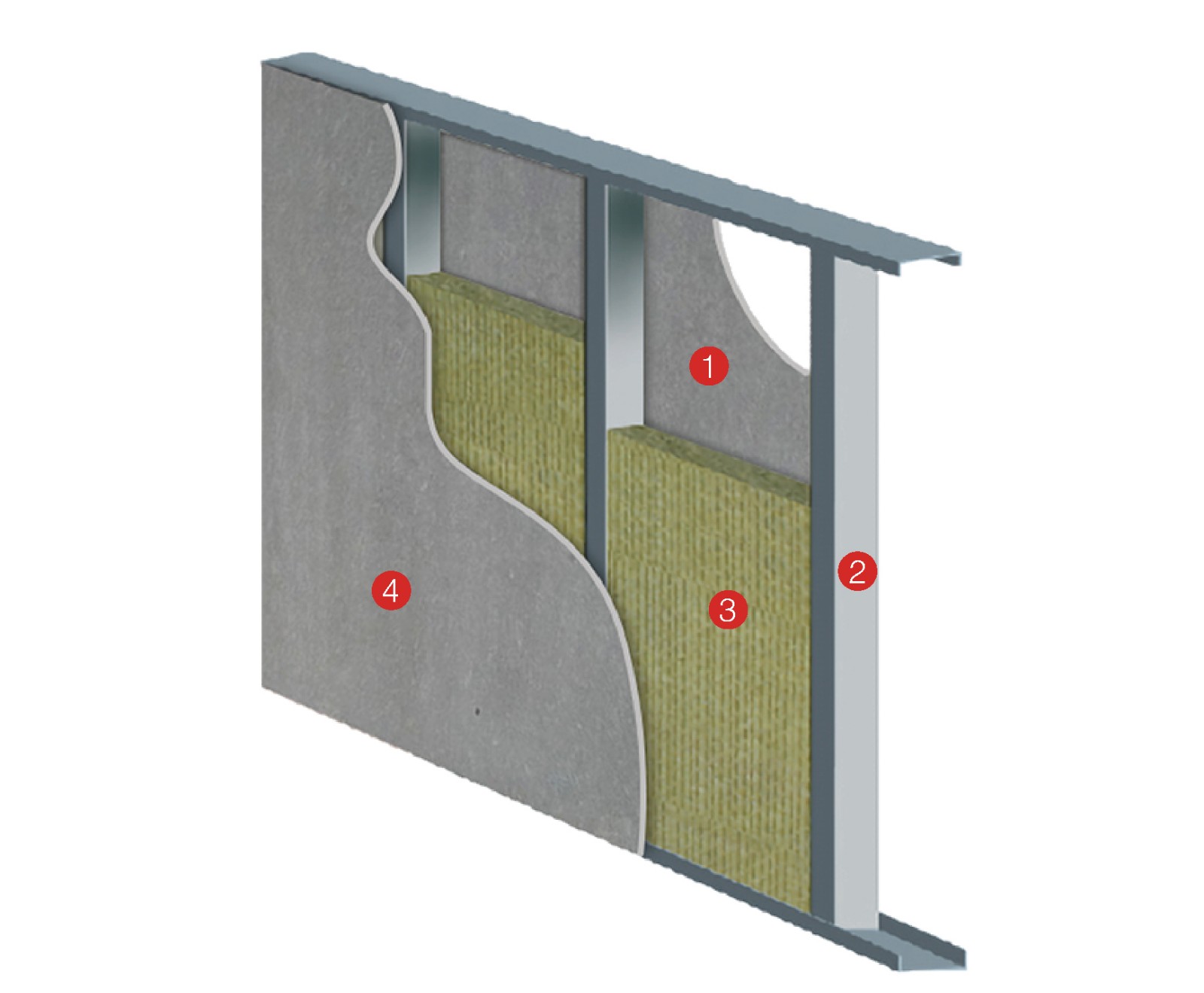

Insulation of internal partition

1.Cement fiberboard / metal wall panel

2.Stud

3.ABM Multi-function Board (MB series)

4.Cement fiberboard / metal wall panel
