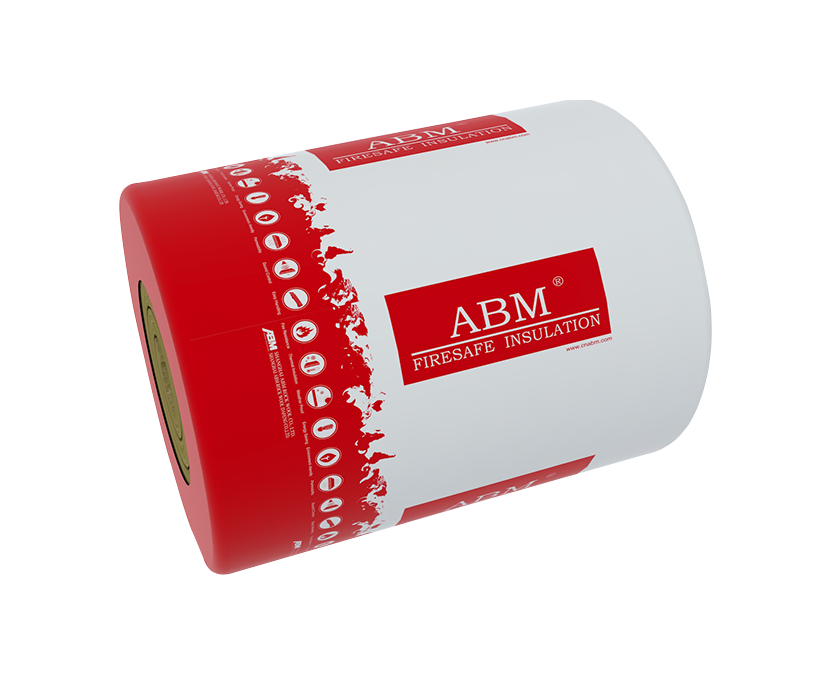

ABM-SR-MWB80 is a flexible and rolled blanket, made of rock wool blanket and metal mesh stitched together by wire. It is high temperature resistant and easy handling. The products can be supplied with Aluminium glass cloth between mesh and wool.
Product Type | ABM - SR - MWB80 | |
Nominal Density | 80 kg/m3 | |
L x W* | 5000x600mm | 3000x600mm |
Thickness | 20,30,40,50mm | 75,100mm |
*Other size and thickness are available on request
Properties | Value | Unit | Standard | |
Thermal Conductivity Coefficient | 10℃ | 0.034 | W/(m?K) | ASTM C177 ASTM C518 GB/T 10295 |
70℃ | 0.043 | |||
Fire Classification | Non- combustible | --- | IMOA.799(19) | |
Max Service Temperature | 650 | ℃ | ASTM C411 | |
Melting Point | ≥1000 | ℃ | --- | |
Water Vapor Absorption | ≤1.0 | % | ASTM C1104M | |
Sound Absorption | αw=0.9 | - | IS0 354 ISO11654 | |
Facings | ALGC（AG1） | -- | IMO A. 653(16) Low flame- spread | |
Environment | Asbestos free, no CFCs、HCFCs or HFCs | --- | --- | |
※ It can be customizedwith Aluminiumglasscloth(ALGC) between wool and wire mesh
ABM-SR-MWB80 is suitable for thermal and comfortable insulation of marine applications, especially for pipes, big vessels and tanks with temperature more than 250℃.
ABM has prepared a variety of facings for different products. In most cases, these facings can protect the product and enhance its performance. Customers can choose the facing base on personal demands.
The EGF-20210 is strong enough to protect insulation materials and prevent the dust spread to the environment with its high density
AG-10701 is composited with Aluminium foil and glass cloth, has good tensile strength, dust-free and nice outlook.
AL-30150 is a reinforced aluminum surface can provide the best solution on vapour barrier. It can protect the insulation materials and steel from vapour which will damage the insulation properties and cause the corrosion.
