Curtain Wall Fire Stop Board

ABM^? Curtain Wall Fire Stop Board is designed specially for all types of curtain walls. The product has higher temperature resistance, higher melting point, longer fire resistance time and smaller high-temperature linear shrinkage.

CFS series can be applied not only as the fire and smoke barrier between curtain wall and floor slab or curtain wall and partition, but also as the barrier between other construction gaps around wall penetration pipes or floor penetration pipes. In order to enhance the smoke barrier capability of CFS series, fire proof aluminum foils can factory-laminated to the rock wool board.

Standard Specification

Product Properties

Product Application

Authenticity Verification

Product Type	CFS 64	CFS 80	CFS 110	CFS 120
Nominal Density, kg/m³	64	80	110	120
Thickness, mm	135	100	100	100
耐火極限，小時(shí)	1		2	4
Size(L×W), mm	1200x600

Properties	CFS	Unit	Test Method
Fibre Diameter	≤6	mm	GB/T 5480
Thermal Conductivity(25℃)	≤0.038	W/(m?K)	GB/T 10295
Reaction to Fire	A1	---	GB 8624
Melting Temperature	≥1000	℃	---
Surface Burning Characteristics	Smoke Development≤5, Flame Spread=0	---	ASTM E84
Linear shrinkage at maximum use temperature （650℃）	<2	%	ASTM C356
Acidity Coefficient	≥2.0	---	GB/T 5480
Water Repellence	≥99	%	GB/T 10299
Mass Moisture Absorption	≤0.5	%	GB/T 5480
Short-term Water Absorption (partial immersion, 24h)	≤0.5	kg/m²	GB/T 30805
Corrosiveness	Corrosion Free	---	ASTM C665

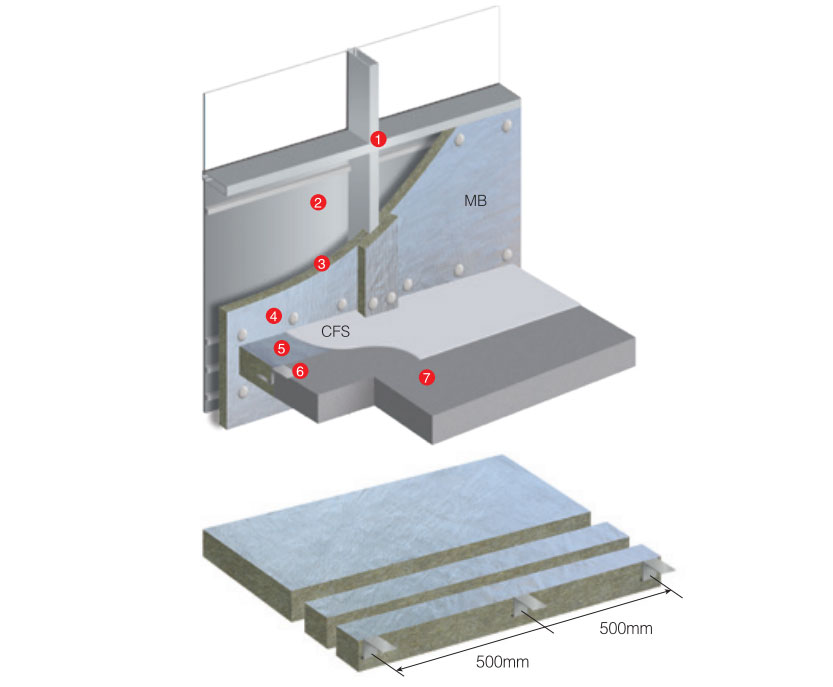

Fire & Thermal Insulation for Curtain Wall System

1.Frame

2.Non-transparent Part of the Curtain Wall

3.ABM Curtain Wall Insulation Board (MB series)

4.Facing

5.ABM Curtain Wall Insulation Board (CFS series)

6."Z" Shape Fixing Bracket

7.Floor
